testo 380 - Stack/ Isokinetic Type Particulate Matter (PM Analyzer) 0 ~ 300mg/m3

testo 380 - Stack/ Isokinetic Type Particulate Matter (PM Analyzer) 0 ~ 300mg/m3

  • Rs.0



Part # 0632 3801

Product Description

The constantly rising number of solid fuel systems is leading to a further increase in the emission of particulate matter. The revised version of the 1st German Federal Immission Control Ordinance (BImSchV) presents new challenges for flue gas inspectors, heating engineers and service engineers when it comes to particulate matter measurement.

Delivery Scope

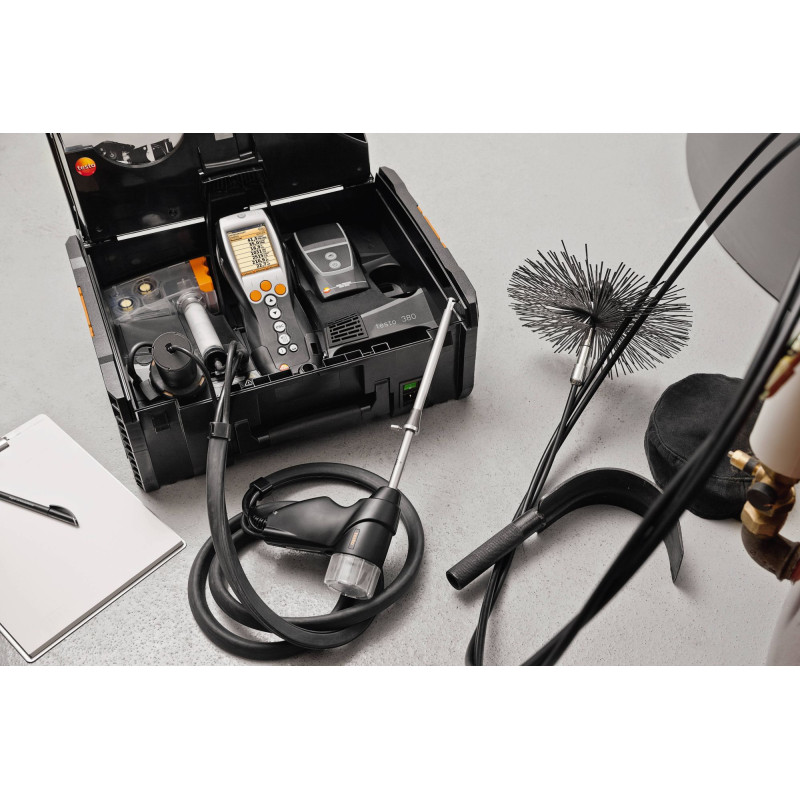

testo 380 Stack Particulate Matter Measurement System incl. testo 380 Particulate Matter measuring instrument with particulate matter probe and cleaning set, Testo 330-2 LL Flue Gas Analyzer with mains unit and Calibration Protocol
General technical data

Storage temperature

-20 to +50 °C

Weight

7900 g

Measuring range

0 to 300 mg/m³

Accuracy

acc. VDI 4206-2

Resolution

0.1 mg/m³ (>5mg/m³)

Dimensions

475 x 360 x 190 mm

Operating temperature

+5 to +40 °C

Housing

ABS

Protection class

IP40

Display type

LCD

Display function

shows warm-up phase and operational readiness

Power supply

via internal mains unit: 100 V AC/0.45 A to 240 V AC/0.2 A (50 to 60 Hz)

Maximum

500.000 readings

unit (incl. Bluetooth, H2-compensated CO cell), modular flue gas probe (length 300 mm, Ø 8 mm), combustion air temperature probe (length 190 mm).
