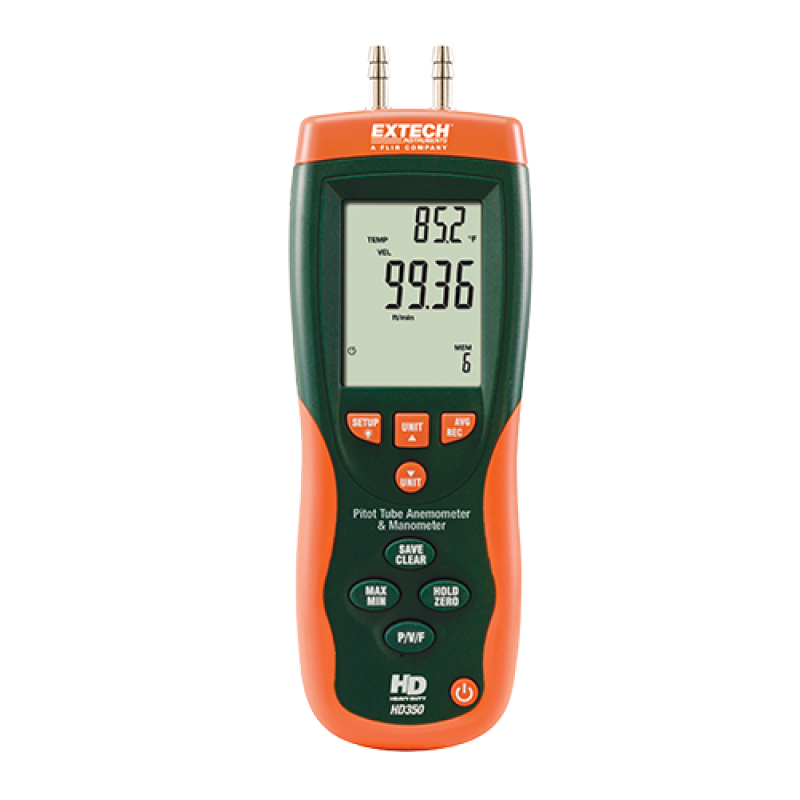

Extech HD350 Pitot Tube Anemometer + Differential Manometer
- Brand: Extech Instruments by FLIR
- Product Code: HD350
- Availability: In Stock
-
Rs.0
Measures Air Velocity/Airflow in difficult-to-reach or tight locations
The HD350 is a Pitot tube anemometer and differential manometer. Measures Differential pressure in 5 selectable units of measure and includes a Pitot tube and 2 connection hoses for measuring Air Velocity/Air Flow. Additional features include data hold, auto power off, zero function, plus manually record/recall up to 99 readings. Built-in USB port. Complete with software and USB cable, 9V battery, pitot tube with two 33.5 in. (85 cm) connection hoses, 100-240 Volt universal AC Adaptor and hard carrying case.
- Simultaneous display of Pressure, Air Velocity or Air Flow plus Temperature
- ±0.7252psi range
- 5 selectable units of pressure measurement
- Max/Min/Avg recording and Relative time stamp
- Data Hold and Auto power off functions
- Large LCD display with backlighting, USB port
- Zero function for offset correction or measurement
- Store/Recall up to 99 readings in each mode
- Includes Windows® compatible software with cable, 9V battery, pitot tube with two 33.5" (85cm) connection hoses, and hard carrying case
Specifications
Range
Pressure
psi 0.7252psi
mbar 50.00mbar
inH2O 20.07inH2O
mmH2O 509.8mmH2O
Pa 5000Pa
Repeatability ±0.2% (Max. ±0.5
Linearity/Hysteresis ±0.29FS
Maximum Pressure 10psi
Response Time 0.5s typical
Air Velocity
ft/min 200 to
15733
m/s 1 to 80.00
km/h 3.5 to
288.0
MPH 2.25
to 178.66
knots 2.0 to
154.6
Air Flow
CFM 0 to
99,999
CMM 0 to
99,999
Temperature
°F 32.0 to 122.0°F
°C 0 to
50°C
Dimensions/Weight
Meter: 8.2 x 2.9 x 1.9" (210 x 75 x 50m
m) / 12oz (340g)
Pitot Tube: 15.4 x 7.7” (390 x 195mm) /
