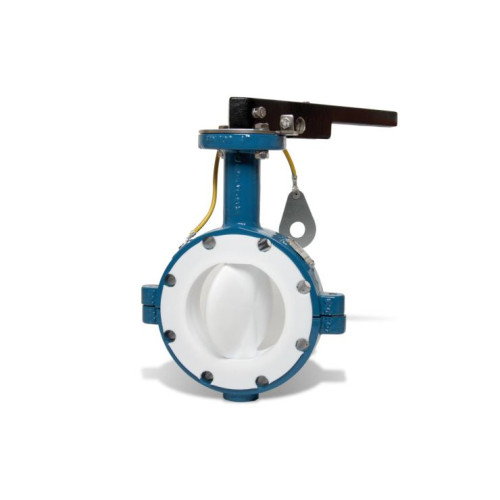

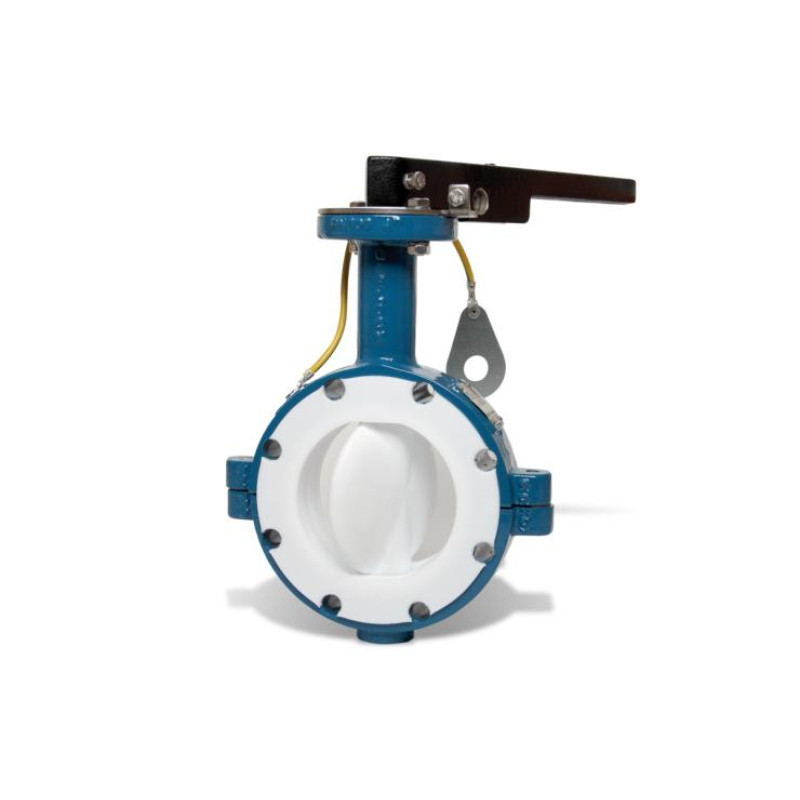

Mobile Seal Butterfly Valves for road tanker vehicles, railway cars, silos, and other transportation and storage containers.
- Brand: Garlock USA
- Product Code: Mobile Seal
- Availability: In Stock
-
Rs.0
MOBILE-SEAL® valves are used on road tanker vehicles, railway cars, silos, and other transportation and storage containers where high chemical resistance, reliability, and special safety requirements are essential. MOBILE-SEAL® is EN 14432 approved.
Dimensions
- 2in / 5.08 cm up to 4 in / 10.16 cm
Flange Connection
- ASME B16.5 class 150 lbs (design RF/FF)
- EN 1092 PN 10/16 (Design A/B) (Available upon request)
Face-to-Face Dimensions
- ISO 5752 Table 5 short
- ASME B16.10: 2in / 5.08 cm to 4in / 10.16 cm Table Narrow
- DIN EN 558-1 GR 20
- MSS-SP 67: 2in / 5.08 cm to 4in / 10.16 cm Table Narrow
- API 609: 2in / 5.08 cm / to 4in / 10.16 cm Category A
Body Strength
- DIN/EN 12516 T2 (DIN 3840)
- Tested within the scope of the inspection body designate by Module H1
Operating Pressure
- 2in / 5.08 cm / to 4in / 10.16 cm: 145 psi / 10 bar (depending on operating temperature)
Testing
- EN 12266 P10
- EN 12266 P11
- EN 12266 P12 Leak rate A
Bodies
- Water and Lug design with long neck for insulation
Vacuum
- Up to 1 mbar abs. (depending on size and temperature)
Temperature Range
- -40°F / -40°C up to 392°F / 200°C (depending on material)
Head Flange
- EN ISO 5211
- NF E 29-402
Liner
- PTFE
