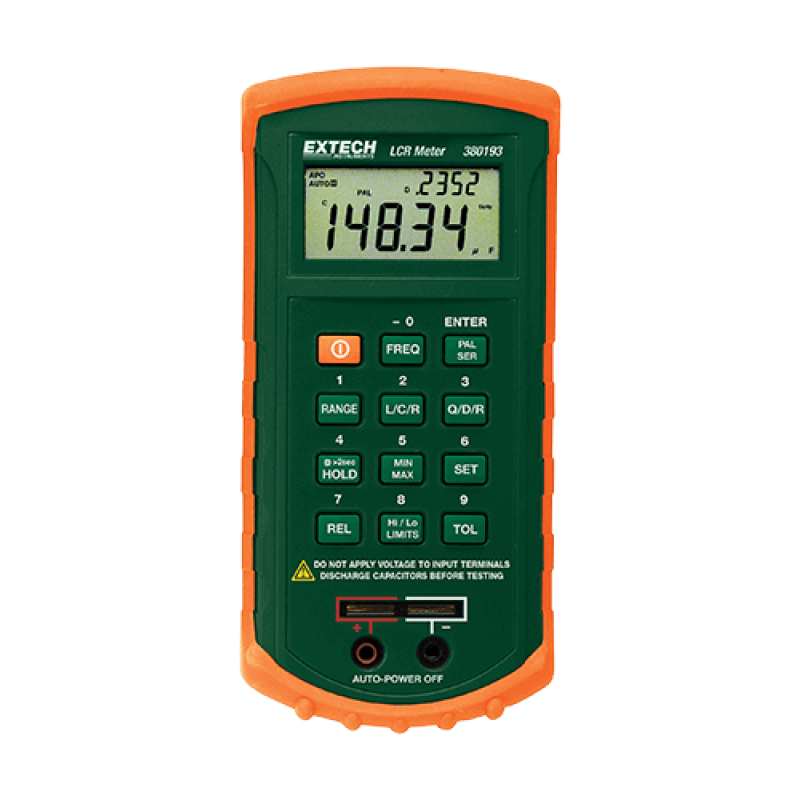

Extech 380193 Passive Component LCR Meter

• Simultaneous 20,000/10,000 count display of the primary parameter (L, C or R)
• Secondary parameter of Q (quality), D (dissipation) or R (resistance)
• Set Hi/Lo limits using absolute values or percentage limits
• Parallel or Series equivalent circuit
• Automatic blown fuse indication
• Built-in test fixture or use external test leads

Specifications                         Ranges
Inductance                     2000.0μH, 20.000mH, 200.00mH, 2000.0mH
                                         20.000H, 200.00H, 2000.0H, 10000H
Capacitance                   2000.0pF, 20.000nF, 200.00nF, 2000.0nF
                                        20.000μF, 200.00μF, 2000.0μF, 10.000mF
Resistance                     20.000Ω, 200.00Ω, 2.0000kΩ, 20.000kΩ,
                                        200.00kΩ, 2.0000MΩ, 10.000MΩ
DF (with C)                    0 to 0.9999
Q                                     0 to 9999
Test Frequency            120Hz and 1kHz
Dimensions                   7.56 x 3.58 x 2.1” (19.2 x 9.1 x 5.25cm)
Weight                          12.87oz (365g)
