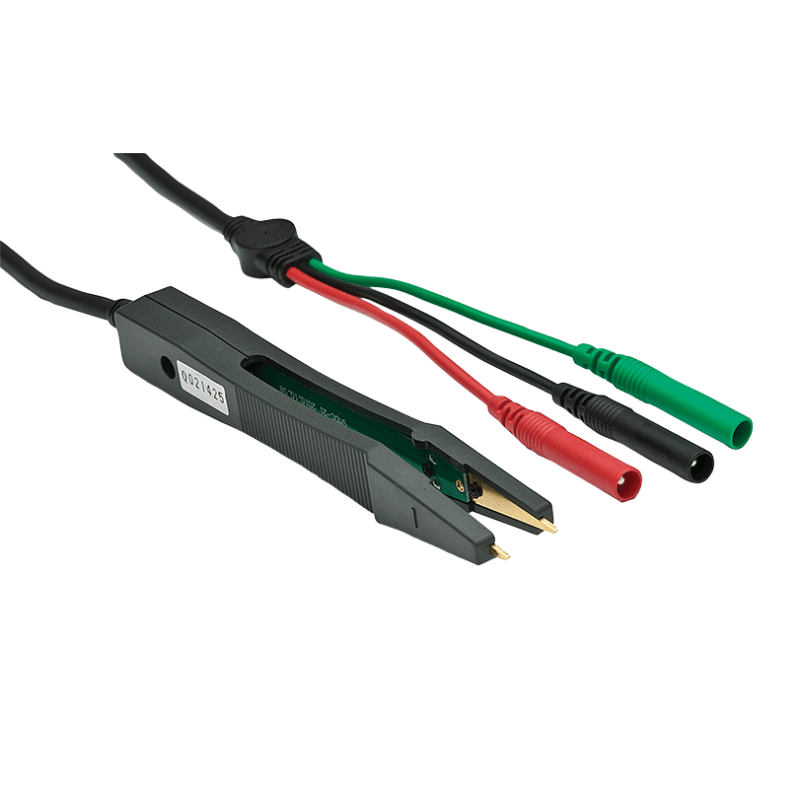

Extech LCR203 SMD Component Tweezers

The LCR203 are SMD component tweezers for use with Extech's LCR200 LCR meter. These tweezers make it easy to test and sort simultaneously for single handed operation. Tweezers complete the circuit with components easier than separate test leads. Comes with a 6 month warranty.

SMD Component Tweezers Features:

• Cable length: approximately 22" (56cm)
• Max component width: 0.75" (19mm)
• Terminals: 3 banana plugs (High, Low, Guard)

Specifications                                             Ranges
Inductance                          20μH, 200μH, 2000.0μH, 20.0000mH, 200.00mH
                                              2000.0H, 20.000H, 200.00H, 2000.0H
Capacitance                       20pF, 200pF, 2000pF, 20.000nF, 200.00nF, 2000.0nF
                                              20.000μF, 200.00μF, 2.0000mF, 20.00mF
Resistance                          20.00Ω, 200.00Ω, 2.0000kΩ, 20.000kΩ,
                                              200.00kΩ, 2.0000MΩ, 20.000MΩ, 200.0MΩ
DF (with C)                           0.000 to 9
