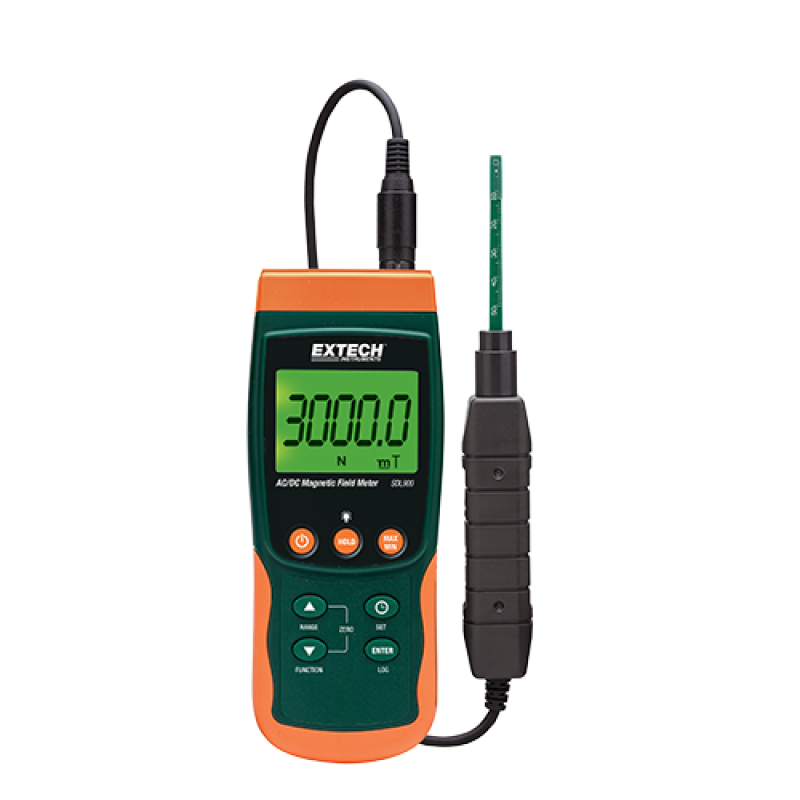

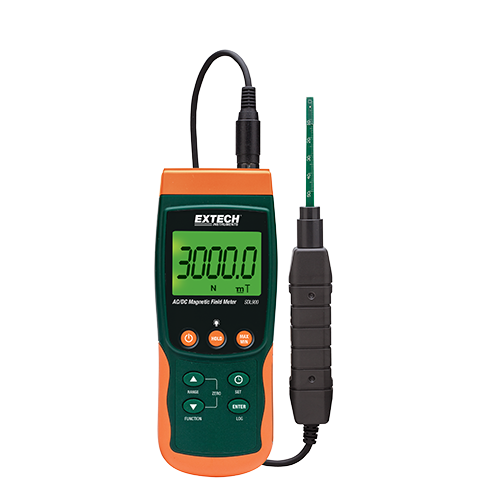

Extech SDL900 AC/DC Magnetic Meter/Datalogger

Magnetic Field Meter/Datalogger with Automatic Temperature Compensation

The SDL900 is an AC/DC Magnetic Meter and Datalogger with automatic temperature compensation. The SDL900 utilizes Hall effect sensor. This meter features an adjustable data sampling rate from 1 to 3600 seconds. Complete with uniaxial magnetic probe sensor with protective cover, SD memory card, 6 AA batteries and hard carrying case.

• Utilizes Hall effect sensor with ATC (Automatic Temperature Compensation)
• Adjustable data sampling rate: 1 to 3600 seconds
• Memory stores 99 readings manually
• Datalogging feature records readings with date and time stamp on an SD card (included) in Excel® format
• N pole/S pole indicator
• Zero button for DC measurement
• Data Hold and Min/Max
• Auto power off with disable
• Complete with uniaxial magnetic probe sensor with protective cover, SD memory card, Universal AC adaptor with multi-plugs (US, EU, UK, AUS), 6 AA batteries, and hard carrying case

Specifications                                   Range
DC milli Tesla                                 300.00mT
                                                          3000.0mT
DC Gauss                                       3000.0G
                                                          30,000G
AC milli Tesla                                 150.00mT
                                                          1500.0mT
AC Gauss                                        1500.0G
                                                         15,000G
Number of Axis                             Uniaxial
AC Bandwidth                                50Hz/60Hz
Sampling Rate                               1 to 3600 seconds
Datalogging                                   Datalog readings on SD card (included
Dimensions/ Weight                      7.1x2.9x1.9" (182x73x48mm)/ 10.7oz
