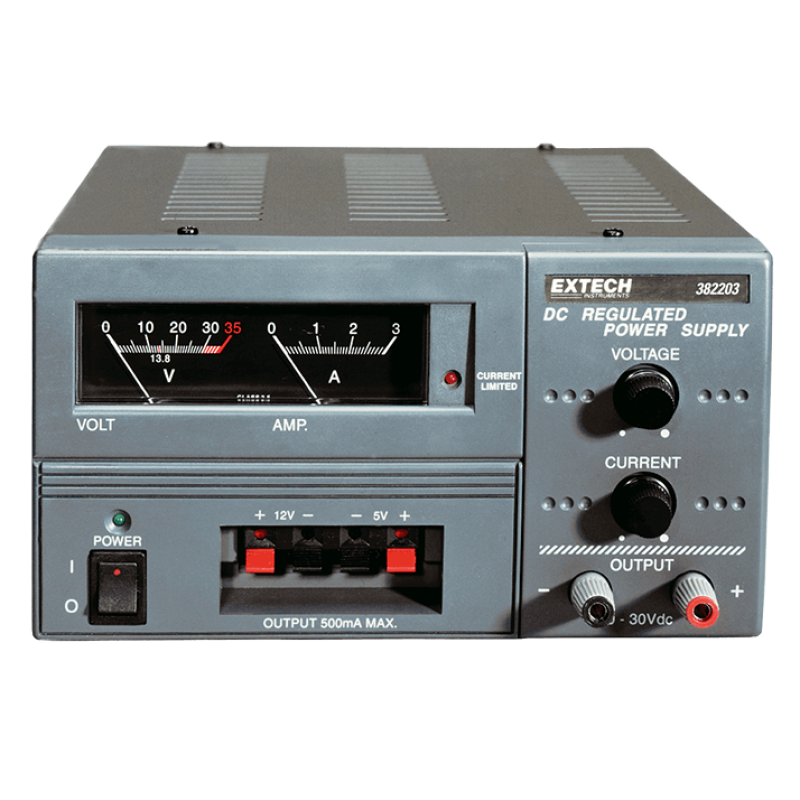

Extech 382203 Analog Triple Output DC Power Supply

Adjustable to 30V/3A with fixed 5V and 12V outputs

382203 is an Analog Triple Output DC Power Supply with Overload and Short Circuit Protection. Constant Voltage or Current supply. Current Limiting Front Panel LED Indicator. Binding Post Terminals for Variable Supply. CE certified. Complete with power cord.

Analog Triple Output DC Power Supply Features:

• Adjustable Voltage and Current output
• Easy snap terminals for fixed 5V/0.5A and 12V/1A outputs
• Constant Voltage or Current
• Current limiting indicator
• Overload and short circuit protection
• Binding post terminals for variable supply

Specifications                            Range
Voltage Output, DC              0 to 30 Volts
Current Output, DC              0 to 3 Amps
Ripple and Noise                   <5mV
Line Regulation                     <0.05%+10mV
Load Regulation                    <0.05%+10mV
Fixed Output Voltage           5V/0.5A (cont.), 1A(max); 12V/0.5A (cont.), 1A(max)
Display 382203                     - Analog or 382213 - Digital (V&A),3 digit 0.1 res. LCD
Power                                      110/220VAC 50/60Hz
Dimensions                             6 x 5.6 x 9.5" (152 x 142 x 242)
Weight                                    11lbs. (5kg)
