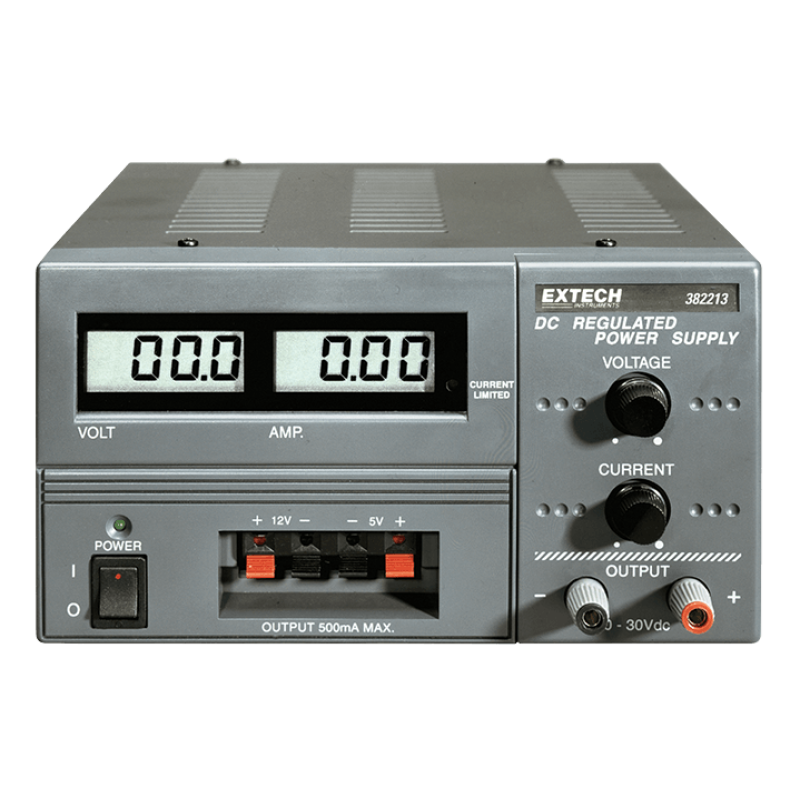

Extech 382213 Digital Triple Output DC Power Supply

Adjustable to 30V/3A with fixed 5V and 12V outputs

Ideal for a wide range of applications including bench testing, field service, hobby and telecommunication equipment, the solid state, compact Extech 382213 digital DC power supply delivers clean, reliable power while protecting itself and any device under test (DUT) from damage. It offers three choices of power output: adjustable 0-30-Volt, 0-3-Amp, plus fixed 5- and 12-Volt. Featuring a digital LCD display, the 382213 also includes overload and short circuit protection, constant voltage/current, easy snap terminals for 5- and 12-Volt outputs, and a current-limited front panel LED indicator. Complete with power cord.

Digital Triple Output DC Power Supply Features:

• Adjustable Voltage and Current output
• Easy snap terminals for fixed 5V/0.5A and 12V/1A outputs
• Constant Voltage or Current
• Current limiting indicator
• Overload and short circuit protection
• Binding post terminals for variable supply

Specifications                            Range
Voltage Output, DC              0 to 30 Volts
Current Output, DC              0 to 3 Amps
Ripple and Noise                   <5mV
Line Regulation                     <0.05%+10mV
Load Regulation                    <0.05%+10mV
Fixed Output Voltage           5V/0.5A (cont.), 1A(max); 12V/0.5A (cont.), 1A(max)
Display 382203                     - Analog or 382213 - Digital (V&A),3 digit 0.1 res. LCD
Power                                      110/220VAC 50/60Hz
Dimensions                             6 x 5.6 x 9.5" (152 x 142 x 242)
Weight                                    11lbs. (5kg)
