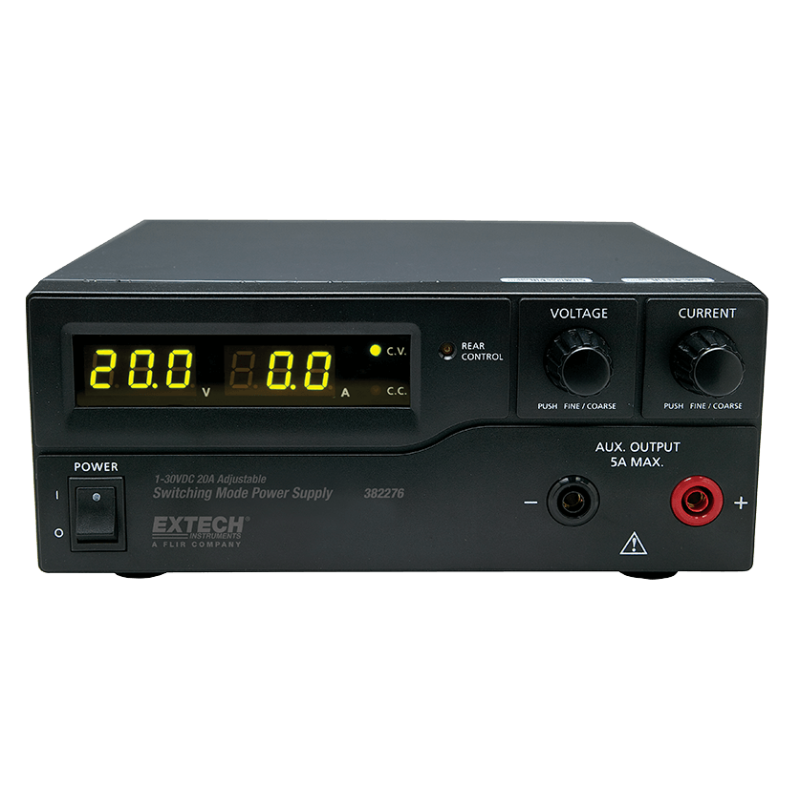

Extech 382276 600W Switching Mode DC Power Supply (230V)

Laboratory Grade Power Supply with 30V/20A Max output:

382276 is a Switching Mode DC Power Supply has an adjustable output of 0 to 30V/ 20A with two user-defined presets and one 13.8V/20A factory preset. Power supply features dual LED displays, high RFI immunity, excellent EMI, and a Thermostatic Control Fan. Additional features include over-voltage, over-temperature, and short circuit protection. Operates at 220V, 50/60Hz and comes complete with AC power cord.

600W Switching Mode DC Power Supply (230V) Features:

• Remote Control for output Voltage/Current and On/Off
• Two user-defined Voltage and Current presets and one 13.8V/20A factory preset
• Automatic Constant Current crossover
• Dual 3-Digit LED displays
• High RFI immunity and excellent EMI
• Thermostatic Control Fan from zero to full speed
• Overload, over-temperature, and short circuit protection

Specifications                               Range
Output Voltage (Res.)             1 to 30V (100mV)
Output Current (Res.)             1 to 20A (100mA)
Basic accuracy                          ±(0.5%+2 digits)
Load Voltage Regulation        50mV
Line Voltage Regulation         20mV
Load Current Regulation        100mA min
Line Current Regulation         50mA min
Ripple and Noise                     <5mVrms
Power                                        382275 - 120VAC, 50Hz/60Hz
                                                    382276 - 230V, 50Hz/60Hz
Dimensions                               7.9 x 3.5 x 8.5" (200 x 90 x 215mm)
Weight                                       5.7lbs (2.6kg)
