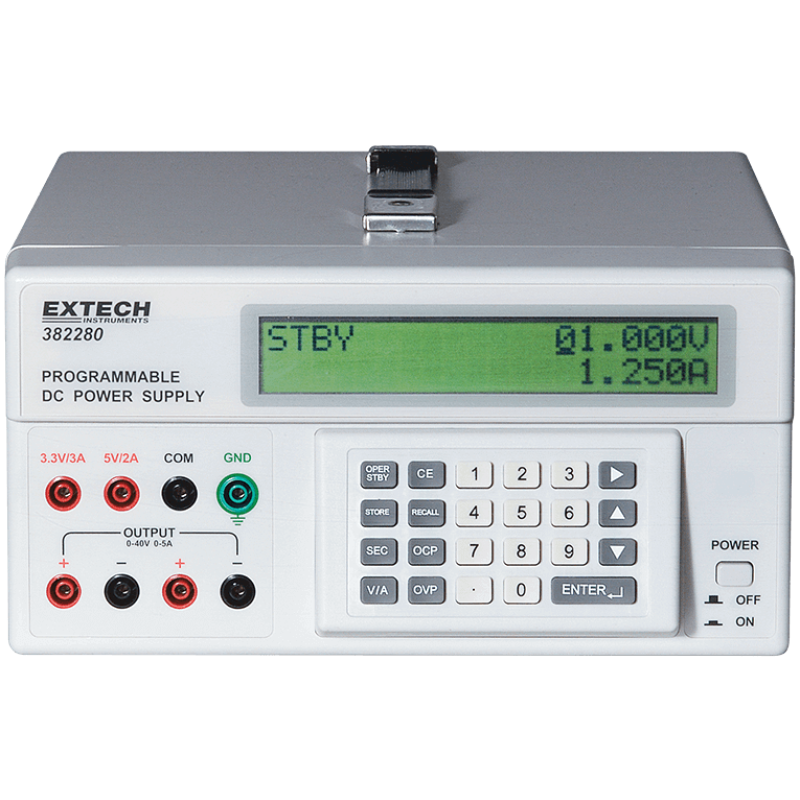

Extech 382280 Precision with Programmable 200 Watt Output DC Power Supply

40V/5A programmable supply with high resolution output and 200 test setup memories:

382280 is a Programmable 200 Watt DC Power Supply that has an adjustable 40V/5A output plus two fixed outputs (5V/2A and 3.3V/3A) and memory for 200 setups for repetitive product tests. It features high stability with low ripple and noise, 0 to 60 second programmable overload delay timer, selectable Constant Current/Constant Voltage, and a bi-directional PC interface that allows setup and read back using virtually any PC communications program.

Precision with Programmable 200 Watt Output DC Power Supply Features:

• High resolution (1mV and 1mA) user programmable output
• Selectable constant Voltage or Current modes
• 0 to 60 second programmable overload delay timer
• Storage/Recall memory
• High stability with low ripple and noise
• Bi-directional PC interface commands allow setup and readback using Windows^® HyperTerminal or similar programs

Specifications                                           Range
Programmable Voltage Output              0 to 40V
Programmable Current Output               0 to 5A
Fixed Outputs                                           5V/2A and 3.3V/3A
Ripple & Noise                                           Voltage (mVrms): 3mV
                                                                    Current (mArms): 3mA
Power Source                                            110 or 220VAC, 50/60Hz
Dimensions                                                12.2 x 9.9 x 5.3" (310 x 250 x 135mm)
Weight                                                        8.4lbs (3.8kg)
