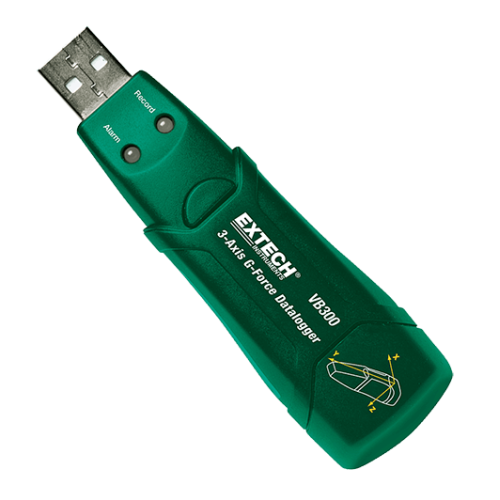

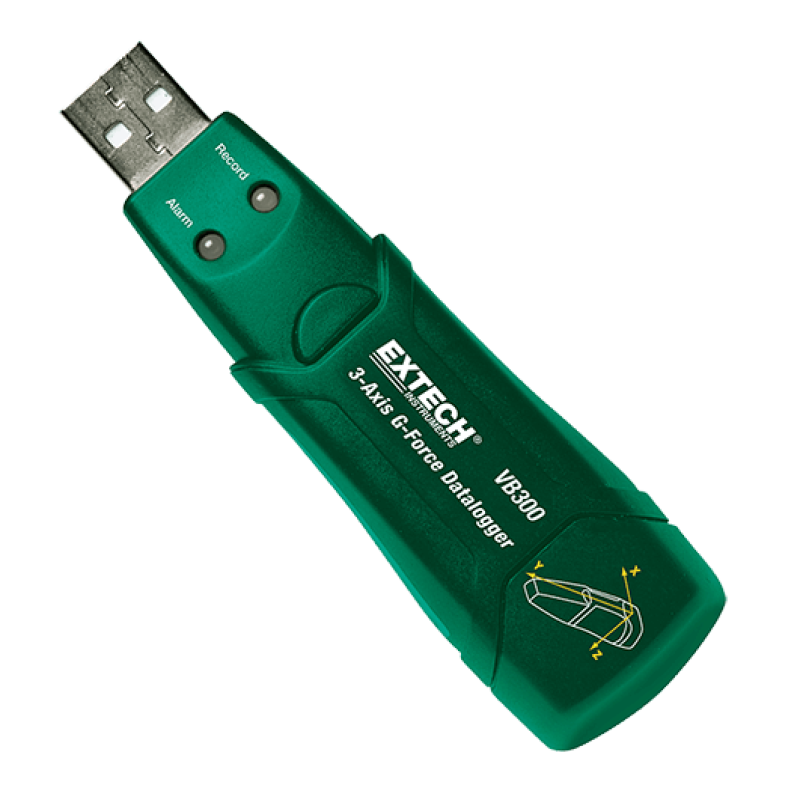

Extech VB300 3-Axis G-Force USB Datalogger
- Brand: Extech Instruments by FLIR
- Product Code: VB300
- Availability: In Stock
-
Rs.0
Records and times 3-axis shock and peaks
The VB300 is a G-Force datalogger which records and times 3-axis shock and vibration (acceleration) readings over its ±18g measurement range. This device will record 3-axis g-force and related peaks to provide a history of shock and vibration conditions. Complete with Magnetized/Bolt-on Mounting Base, 3.6V Lithium battery and Windows compatible analysis software.
- Built-in 3-axis accelerometers record the time when shock occurs
- Real time FFT Frequency and Time-Domain Vibration Analysis
- Record storage, transport or operational data over time
- USB interface for easy set-up and data download
- Datalogs 112028 Motion Detection samples per axis, or 168042 Normal samples
- Selectable X-, Y-, Z-axis or any combination (via software)
- Selectable data sampling rate: 50ms to 24 hours
- Manual and Programmable start modes
- User-programmable alarm threshold
- Long battery life
- Complete with Magnetized/Bolt-on Mounting Base, 3.6V Lithium battery and Windows® compatible analysis software
Specifications
Range
Sensor Type
MEMS semiconductor
Acceleration Sampling Rate (Datalogger) 200Hz
Acceleration Range ±18g
Acceleration Resolution 0.00625g
Acceleration Accuracy ±0.5g
Bandwidth
0 to 60Hz
Sampling rate (Software) 500 ms to 24 hours
Memory 4Mbit
Flash; 112028 Motion Detection samples per axis,or 168042 Normal samples
Data Format Time
stamped peak acceleration, average and peak vector sum
Dimensions 3.7 x 1.1 x 0.8" (95 x 28 x 21mm)
Weight 1oz (20g)
