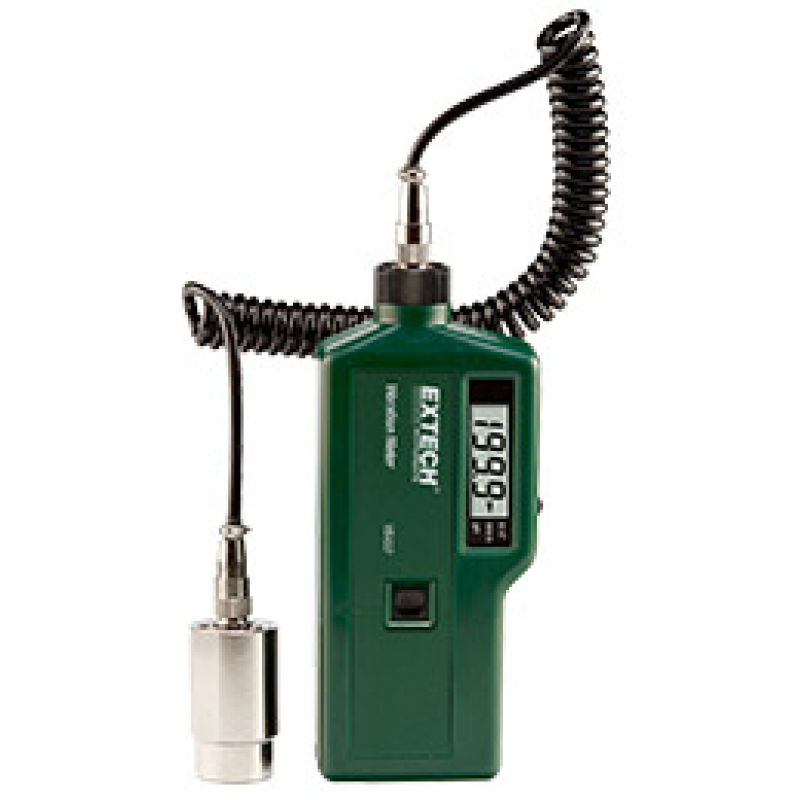

Extech VB450 Vibration Meter

Wide Frequency Vibration Meter with Displacement, Velocity and Acceleration Measurements

The VB450 is a convenient compact sized Vibration Meter which measures vibration levels in industrial machinery. Misalignment, poor balancing, structural compromises, and other factors can cause unwanted vibration increases. VB450 features a wide 10Hz to 1500Hz frequency range and provides Displacement, Velocity, and Acceleration measurement. Complete with remote sensor, magnetic mount, 9V battery, wrist strap, and soft case.

Vibration Meter Features:

• Remote vibration sensor with magnetic adapter on 7.9" (0.2m) coiled cable
• Wide frequency range of 10Hz to 1500Hz
• Velocity (RMS), Acceleration (Peak), and Displacement (Peak-to-Peak) measurements
• Automatic data hold after measurement button is released
• Auto power off after 1 minute
• Low battery indicator
• Complete with remote sensor, magnetic mount, 9V battery, wrist strap, and soft case

Specifications                                       Range
Acceleration (Peak)                       0.1 to 199.9 m/s2
Velocity (RMS)                                0.1 to 199.9mm/s
Displacement (Peak-to-Peak)     1 to 1999µm
Resolution                                       0.1m/s2, 0.1mm/s, 1µm
Basic accuracy                               ±(5% + 1 digit)
Dimensions                                    7.3 x 2.7 x 1.2" (185 x 68 x 30mm)
Weight                                             8.1oz (230g)
